Thanks to overwhelming demand, this model is now sold out. We invite you to explore its advanced successor: GOKO EV-6HD.

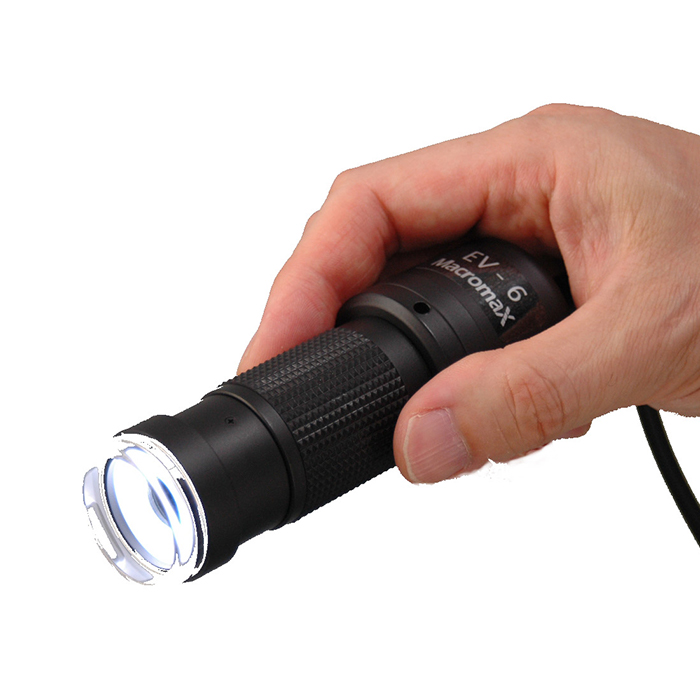

Hand-held scope that captures images from close-up to distant view
Popularly used to inspect PCB by being mounted on processor

Captures images from "ultra close-up view" to "distant view"
No time lag! Captures smooth live video without time lags (NTSC real time system)
Long working distance offers comfortable working space.
Features high-luminosity LED: cool, bright, and extremely long-life
Easy operation: just turn "focus adjustment ring"!
An exclusive 2-way diffuser allows observation both for uneven and flat object.
Extremely light and compact! Best suited for observation in narrow and dark place
Popularly used to inspect mounting of PCB by being mounted on both sides of a processor
MADE IN JAPAN

No time lag! Captures smooth live video without time lags

An NTSC full motion real-time video system captures extremely smooth real-time monitoring with no time lags. Best suited for the inspection for rework. Widely adopted for the visual inspection of automobile parts as well.

Captures multi-distance images from
Close-up (110×) to Distant view.

Working distance and photographic coverage

Working Distance(mm)	8^※2	10	50	100	200	300	400	500	750	1000
Photographic coverage, H × W (mm)	2×2.5	4×5.5	11×14.5	18.5×24.5	33×44	47×63	62×83	76×102	113×150	159×212
Magnification^*1	110	50	20	12	6.5	4.5	3.5	2.5	2	1.5

*1) on 14-inch monitor

*2) "WD: 8 mm" is the distance when attached "Diffuser" is mounted on tip and touches the flat object.

*Working distance and magnification are in round figures.

*Photographic coverage depends on size of monitor.

Long working distance offers comfortable working space!

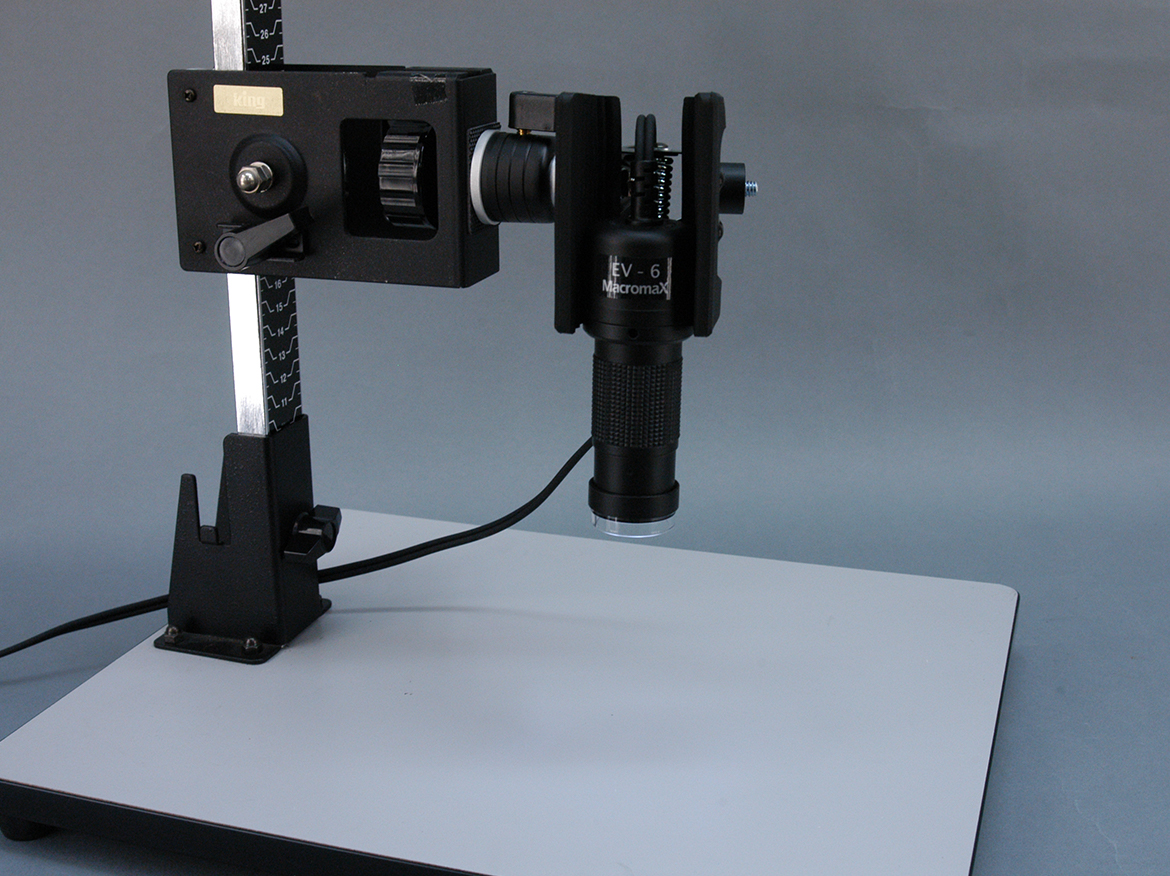

Unlike previous microscopes, EV-6H enables to provide long working distance and displays real-time image onto monitor. This feature is ideal for the inspection by letting the object move, process or rework. EV-6H is popularly used for the inspection of processing of PCB, by being mounted on both sides of a processor.

Easy operation: just turn the ring!

No setting is required. Just connect cable with AC adapter and TV monitor.
Just turn "focus adjustment ring" in one hand.

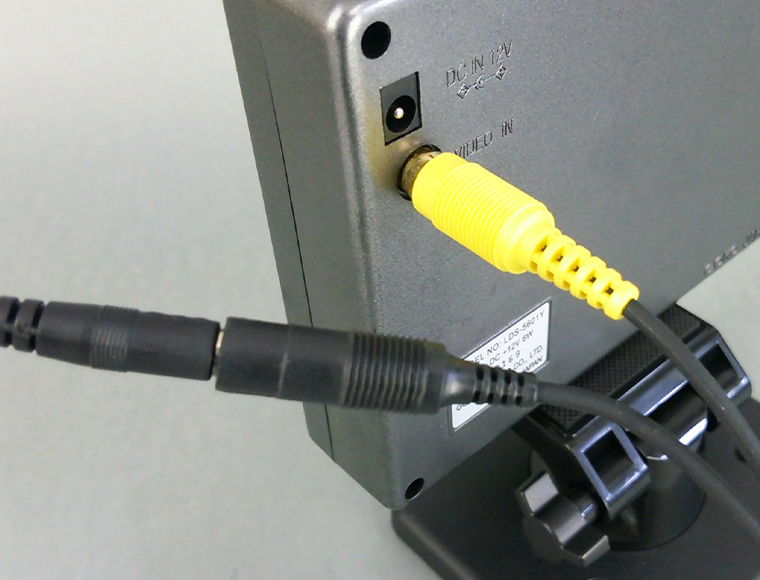

Just connect the cable

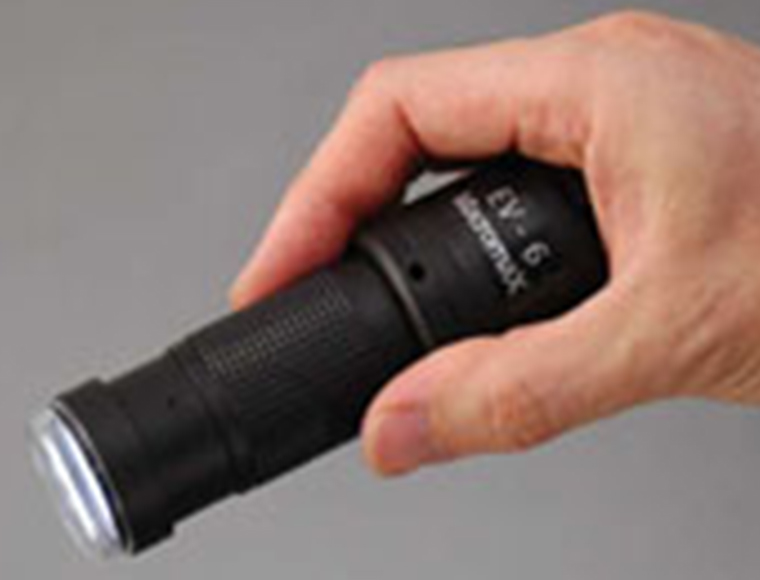

Focus adjustment with one hand

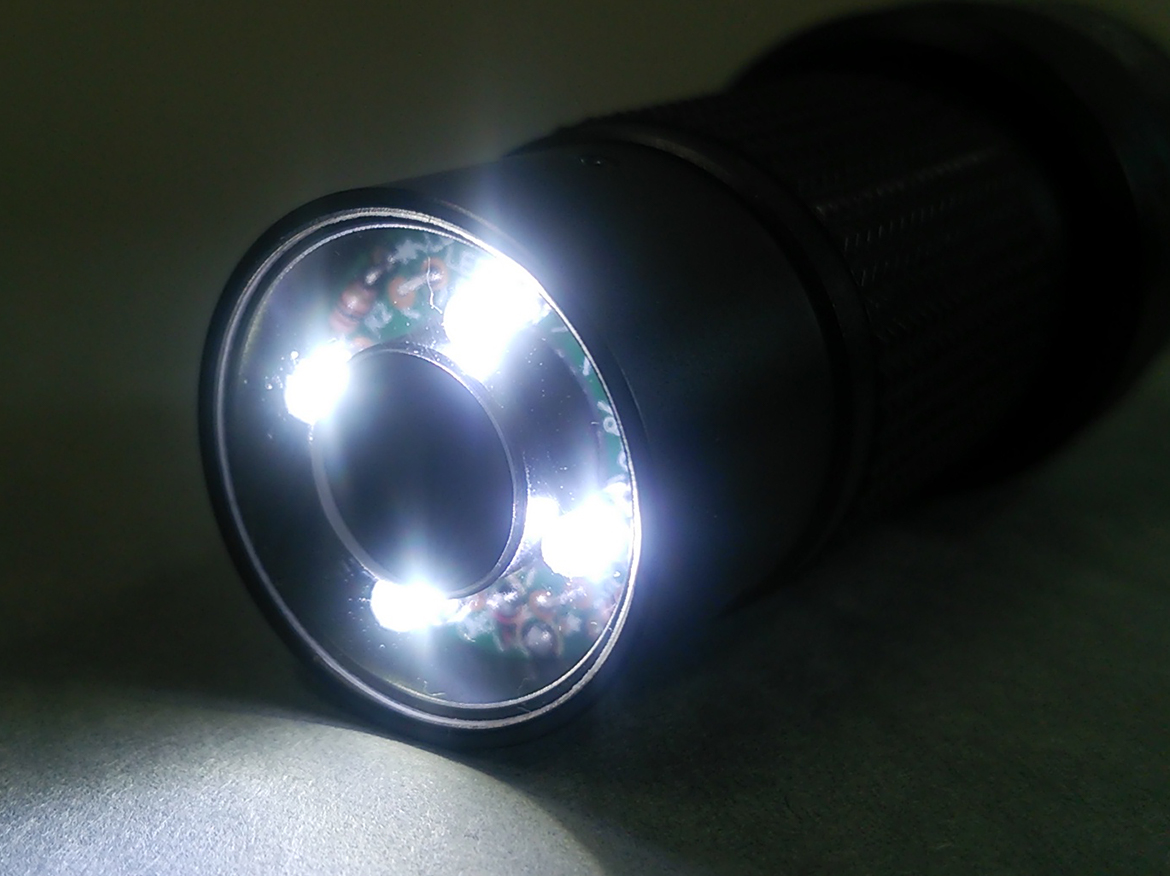

Features high-luminosity LED: cool, bright, and extremely long-life!

Features a maintenance-free lighting system. No extra lightings required in close-up shooting even in dark place.
Unlike devices with halogen lamps, there is no need to change bulbs. No heat is generated that may damage the objects over long observation periods.

An exclusive 2-way diffuser allows observation both for uneven and flat object.

An exclusive diffuser provides 2-way use.

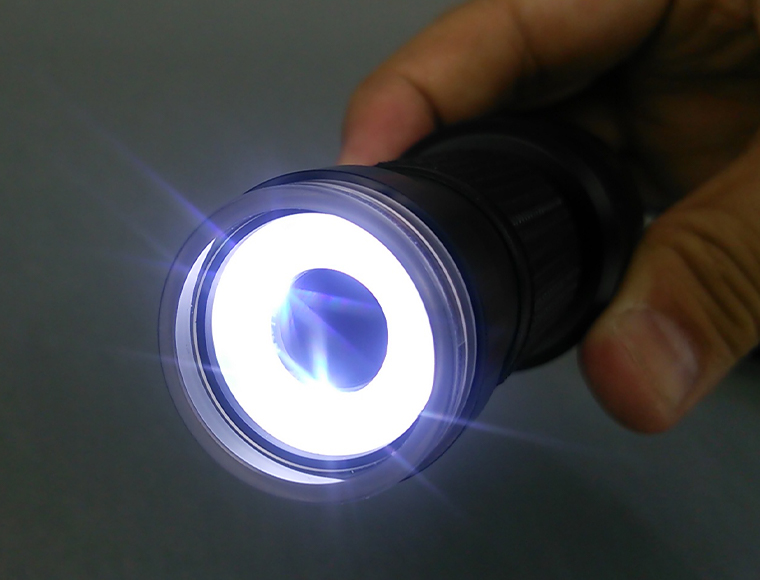

Used as a "diffuser"
To observe short distance object to reduce partial reflection

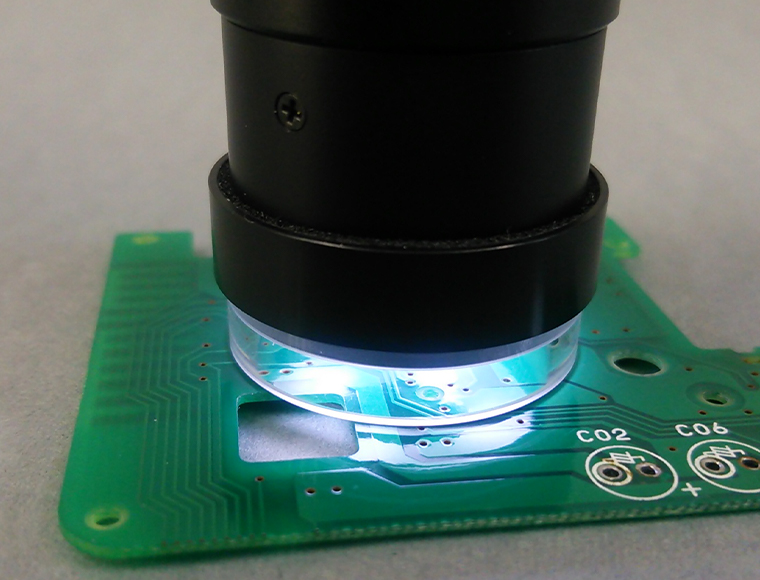

Used as a "focus cap"
To observe flat object easily and stably- EV-6H is designed to focus on flat object when diffuser touches the flat object, in maximum magnification: 110× on 14-inch monitor.
